Custom 12V System Control Hub Aluminum Power Distribution Control Box with 1000W Inverter IP54 Protection Ce/Rohs Certified

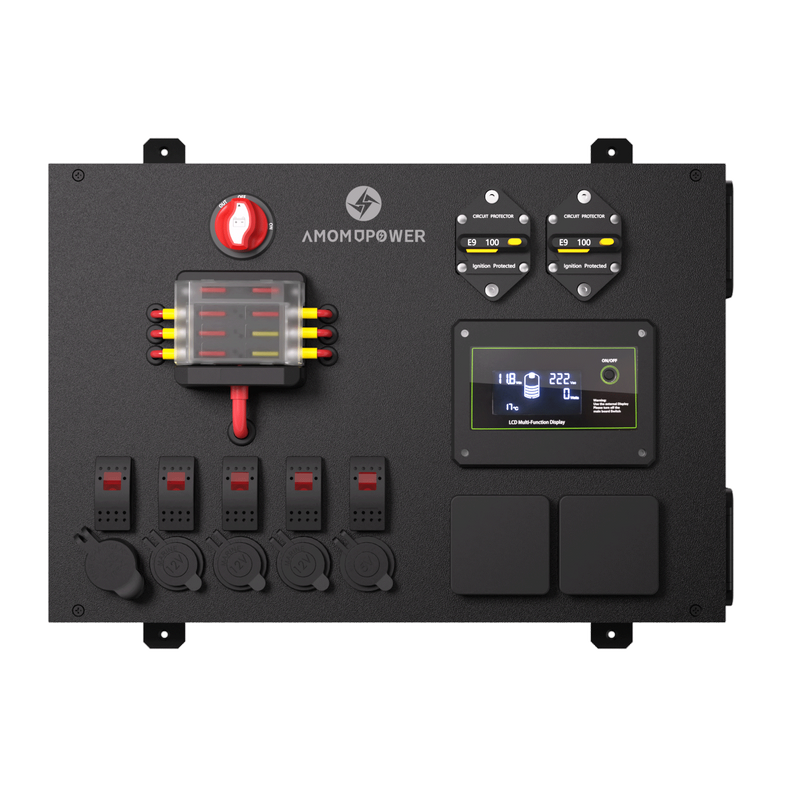

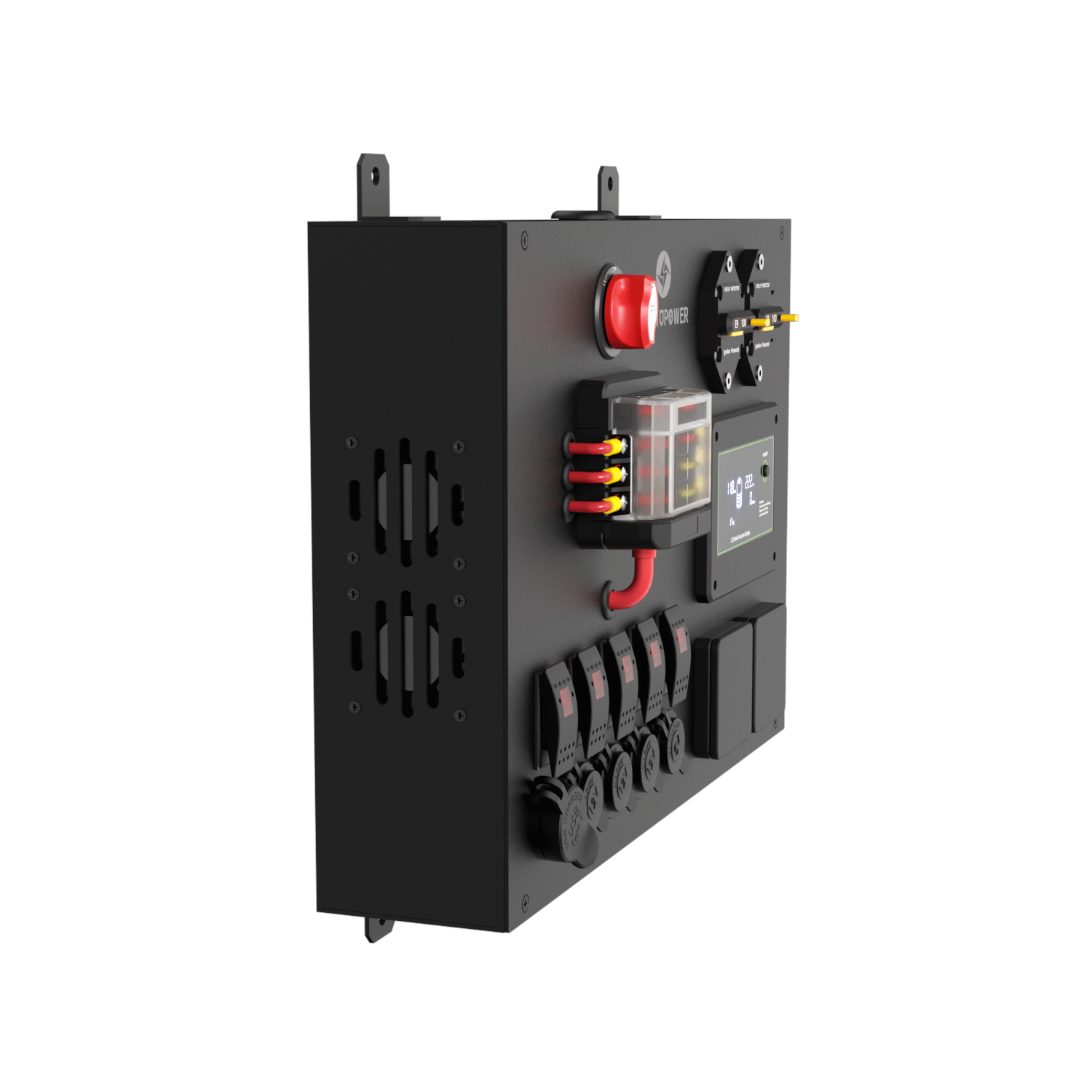

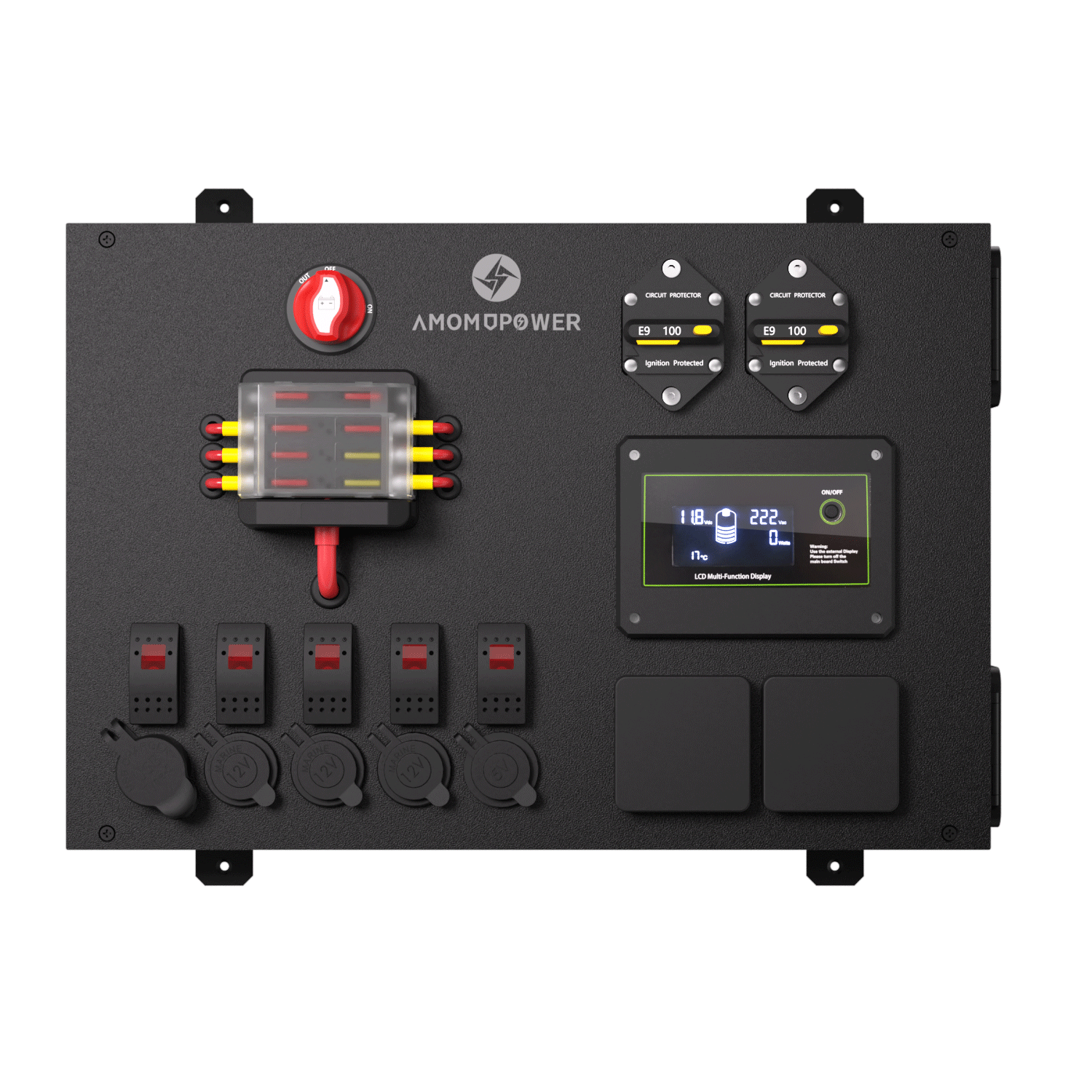

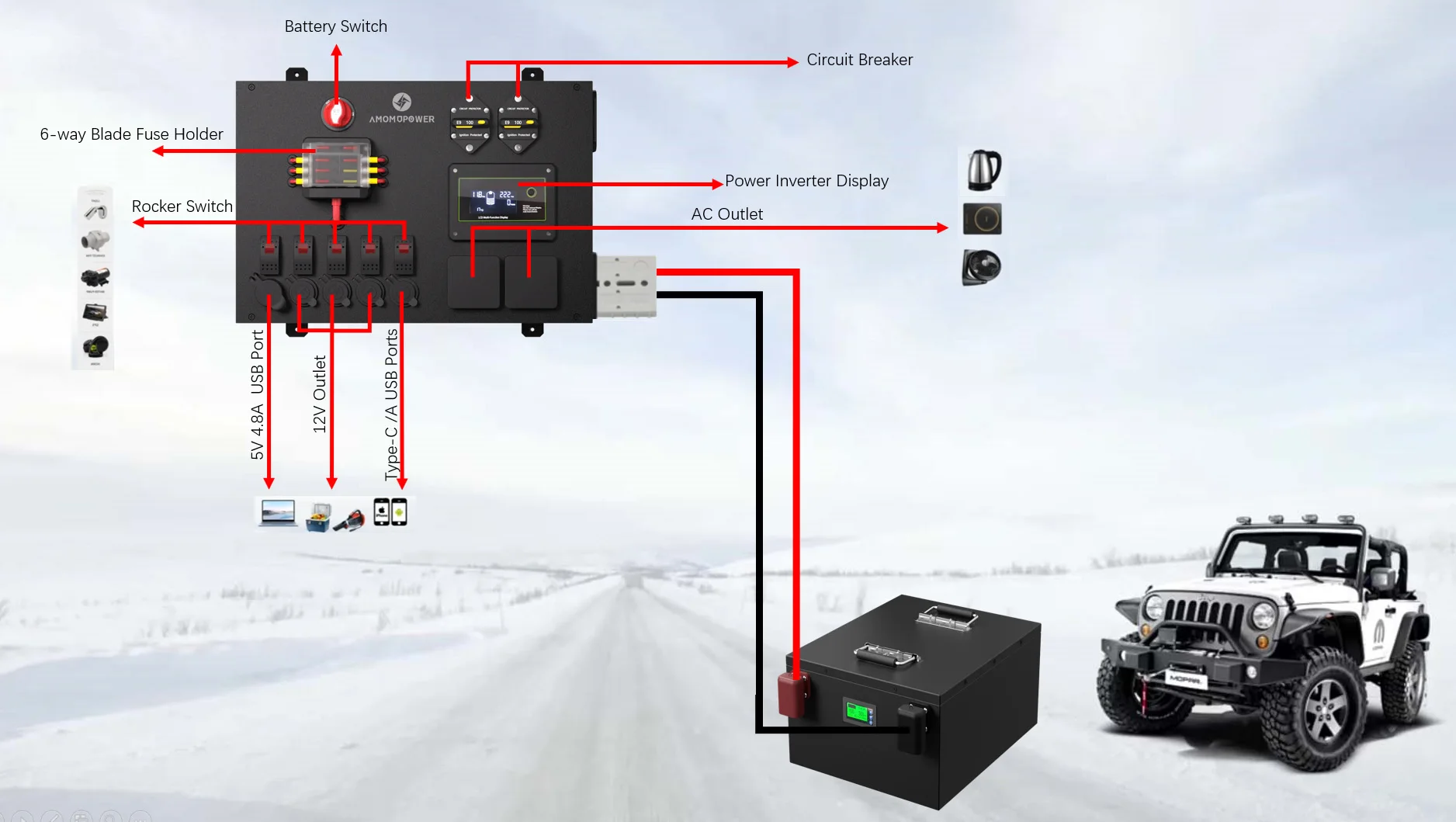

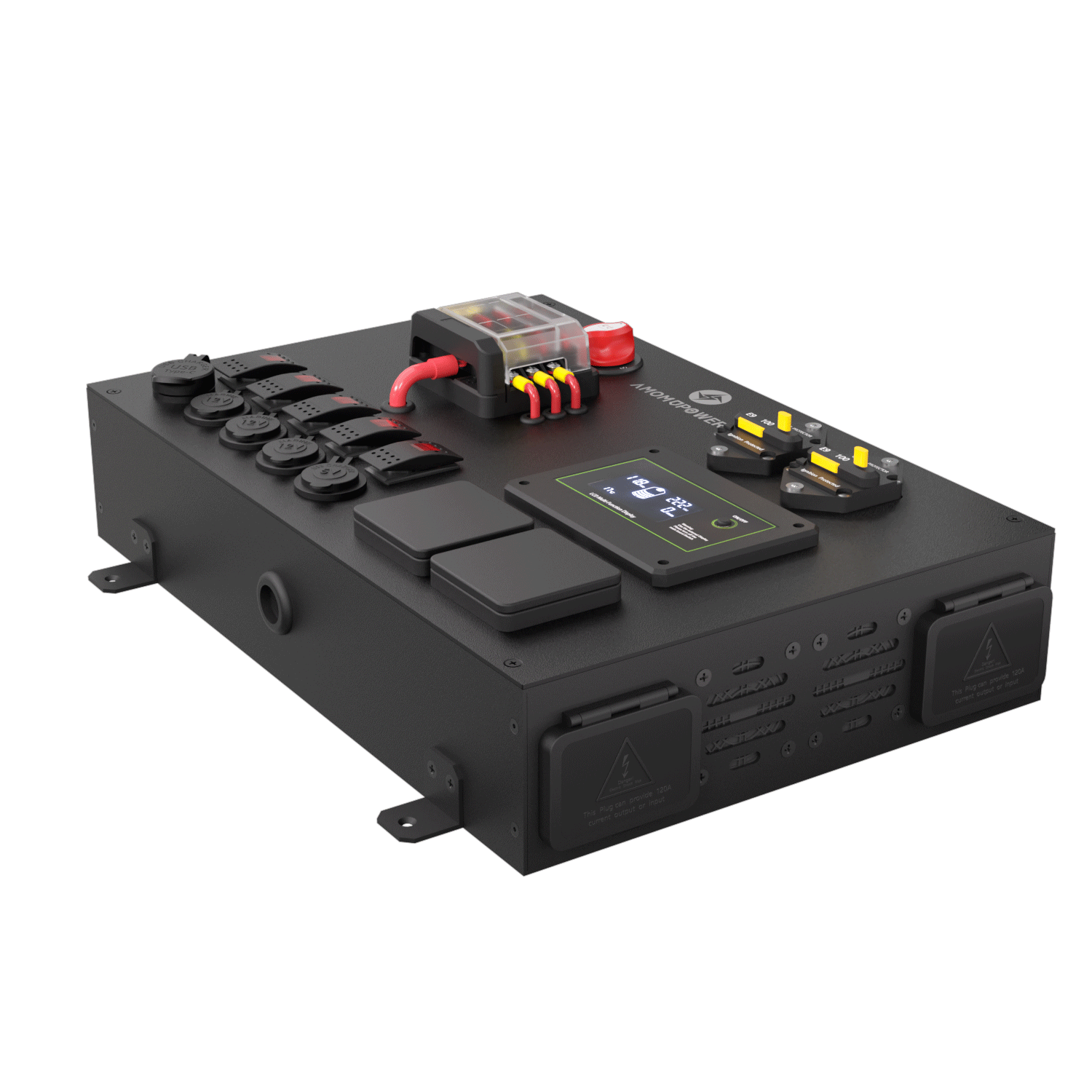

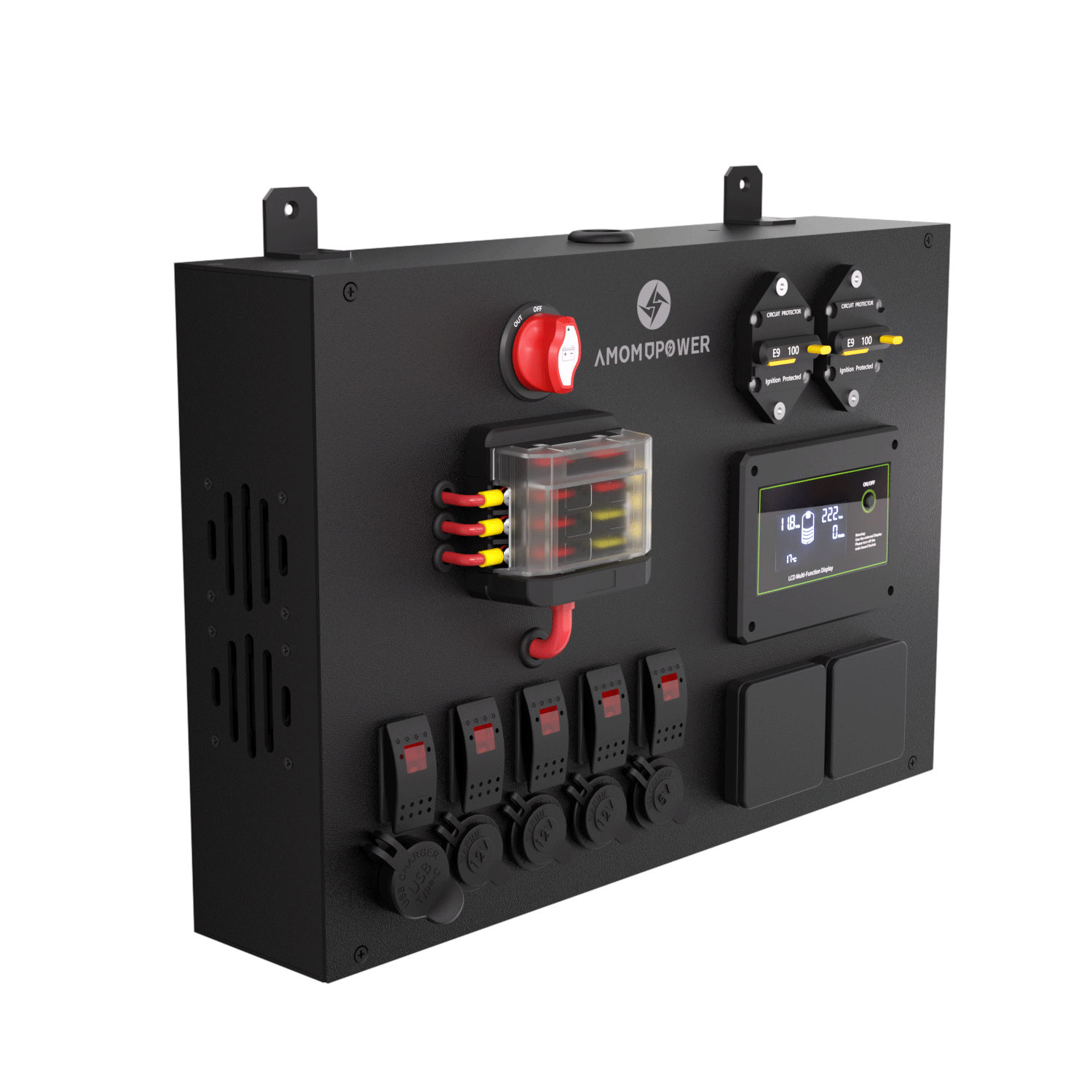

The AmomdPower 12v System Control Box with 1000W Inverter is perfect for your canopy, van, RV, 4WD Canopy and DIY set up. It features sensible wiring, attention to circuit safety, and control of all your electric equipment from Amomd Control Hub. The box is made of laser cut black powder coated aluminum and has a cover plate thickness of 2mm and box thickness of 2mm, which gives it a high hardness and light weight. The switch rating is DC 12V 20A and switch function is on-off, simple but Durable. The USB socket rating is 5V 2.4A and QC3.0+PD18W, which can meet the power output of various devices. The battery switch continuous rating is 150A and inverter is PURE SINE WAVE 1000W. The Anderson socket has a rating of 2120A and fuse block has a rating of 4*20A +2*15A. The box dimensions are 450*305*92 mm.

Precision Engineered for Optimal Energy Management - 12V Power Distribution Control Box: Tailor-made for efficient control of your electrical systems, integrating a robust 1000W inverter. - Aluminum Alloy System Control Hub: Built with durable, lightweight aluminum for longevity and heat dissipation, ideal for demanding applications. IP54 Rated Enclosure for Enhanced Protection - Custom IP54 Rated Control Box: Ensures protection against dust and water splashes, suitable for varied environments and weather conditions. - Rugged Outdoor Readiness: Designed to withstand harsh outdoor elements, ideal for RVs, boats, and off-grid installations. Feature-Rich Design for Versatile Applications - 1000W Inverter Power Distribution: Convert DC power to AC effortlessly, supporting high-power appliances with a versatile 12V input. - Multipurpose Output Options: Equipped with a variety of output types to suit diverse electrical needs, including fuse blocks, USB chargers, and additional sockets. - Adaptable Voltage Range: Compatible with both 12V and 24V DC systems, offering flexibility for various setups and power requirements. - User-Centric Customization: Personalize your control box with optional accessories to match your exact application demands. - Dimensions that Fit:450*305*92 mm, the enclosure is thoughtfully sized for easy integration into tight spaces. - Service with a Personal Touch: Enjoy customized services that cater to your unique specifications, ensuring a solution that perfectly aligns with your project goals.
